SYSBEL Smart Safe Charging Cabinet

SYSBEL The intelligent safety charging cabinet produced is suitable for the storage and charging of electric tool batteries. The product strictly follows the FM6050 standard fire protection structure design, and meets the requirements of the American Occupational Safety and Health Association OSHA 1910.101 and the American Fire Protection Association NFPA 58 regulations.

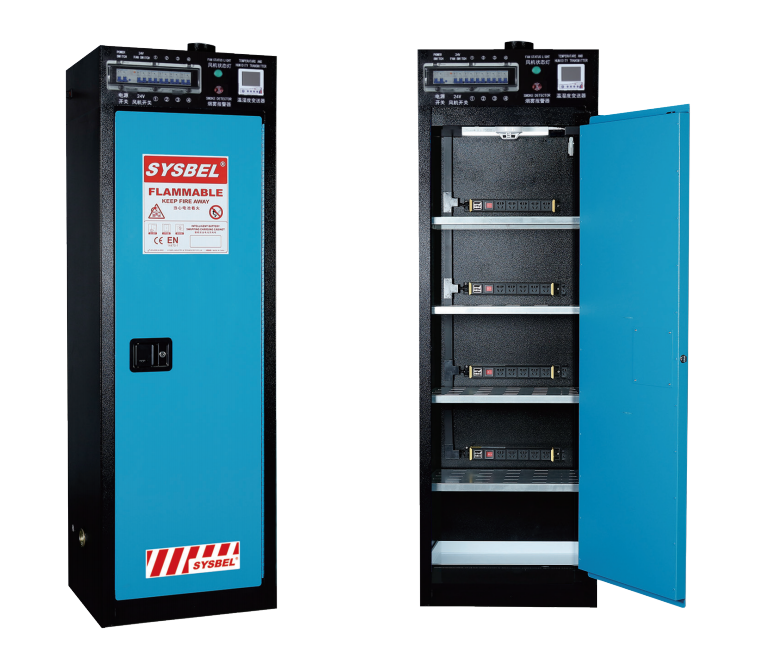

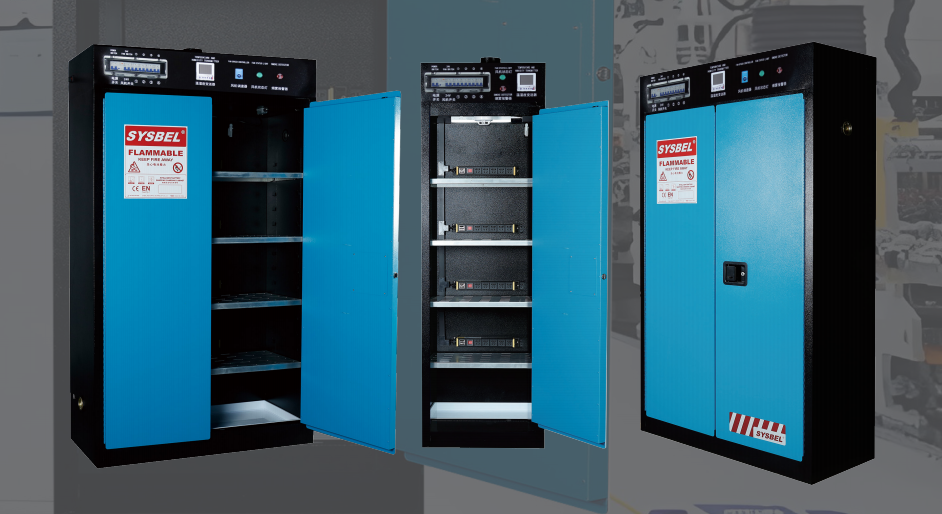

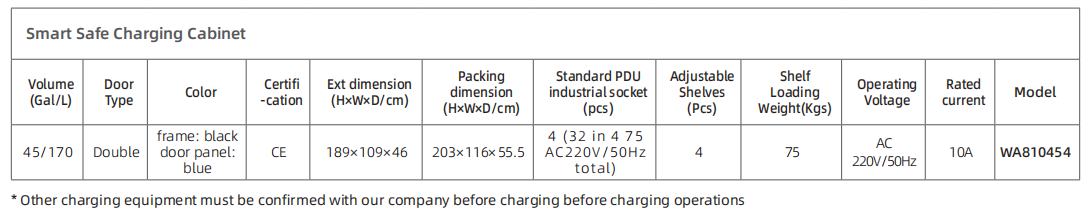

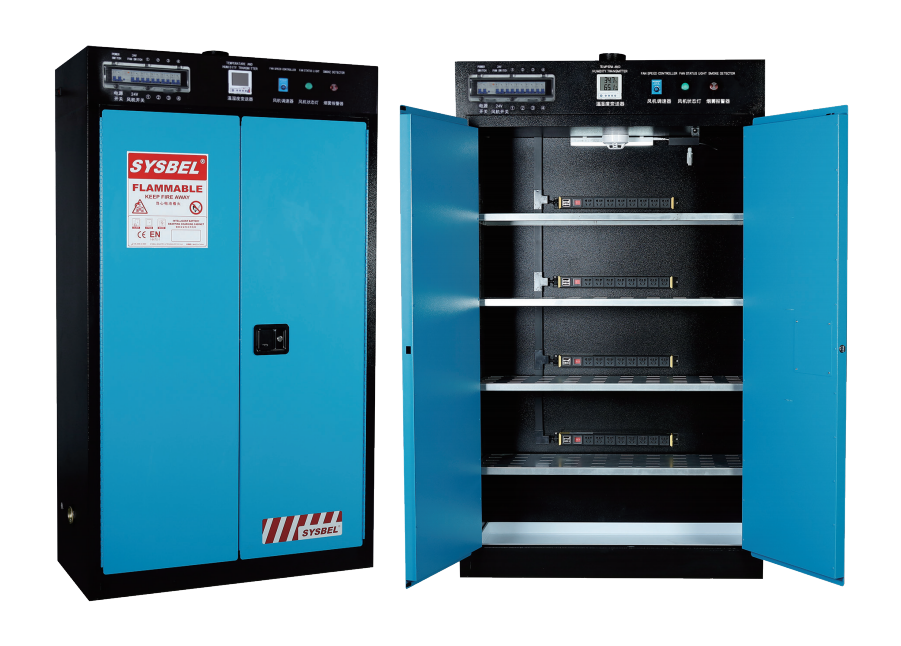

Previously, we introduced our Double Door Smart Safe Charging Cabinet, model WA810454. Today, I’m excited to present SYSBEL’s latest product, the Single Door Smart Safe Charging Cabinet, model WA810224.

Meet the standards and test requirements
1. Safety specifications: "Standards for Electricity Safety Safety of Construction Projects Construction Site" GB 50194- 2014 provides safety specifications for construction site power consumption, including the safety requirements of power distribution rooms, power distribution cabinets, and the use of electric construction machinery. And maintenance regulations.
2. Battery and charger safety: National Standard GB/T 34570.2-2017 "Electric Tools for Charger Pack and Charger Part 2: Safety of Chargers" stipulates that electric tools can rechargeable battery packs and chargers for electric tools. Safety requirements.
3. Specifications for lithium ion battery: SJ/T 11809-2022 "Specifications for Lithium ion battery and battery pack for electric tools" stipulates the electrical performance, safety, identification, quality assessment, packaging and transportation of lithium ion batteries and battery packs for electric tools. It is required that the standard is issued by the Ministry of Industry and Information Technology and has been implemented on January 1, 2023.
4. Concentrated charging cabinet safety management: Some documents provide safety management methods for centralized charging cabinets, including the setting of the charging cabinet, charging operation procedures, safety monitoring measures, etc.
5. EU new battery regulations: EU New Battery Regulations (2023/1542) will be implemented on August 18, 2024, involving harmful substance control, carbon footprint, CE compliance assessment, label requirements, etc. The production and use of tool battery charging cabinet

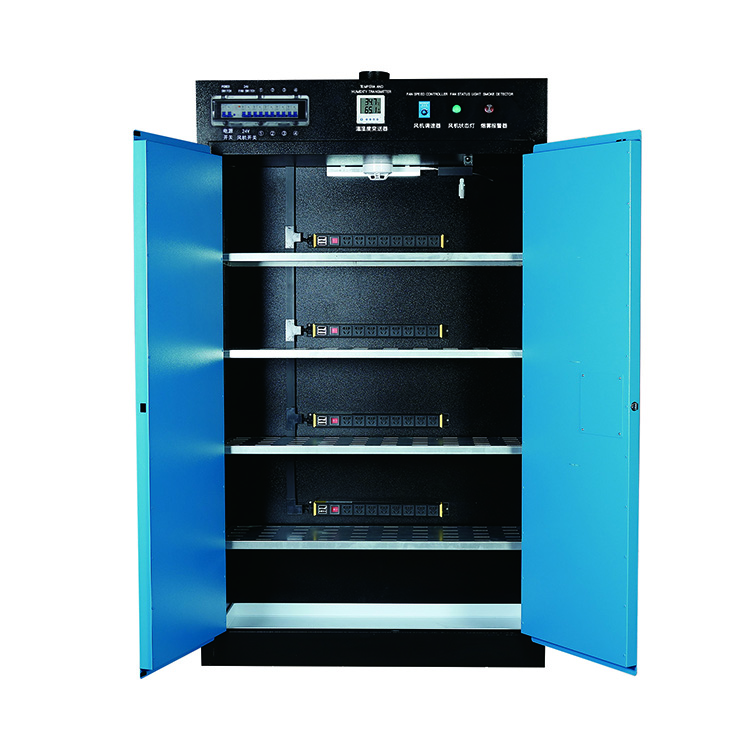

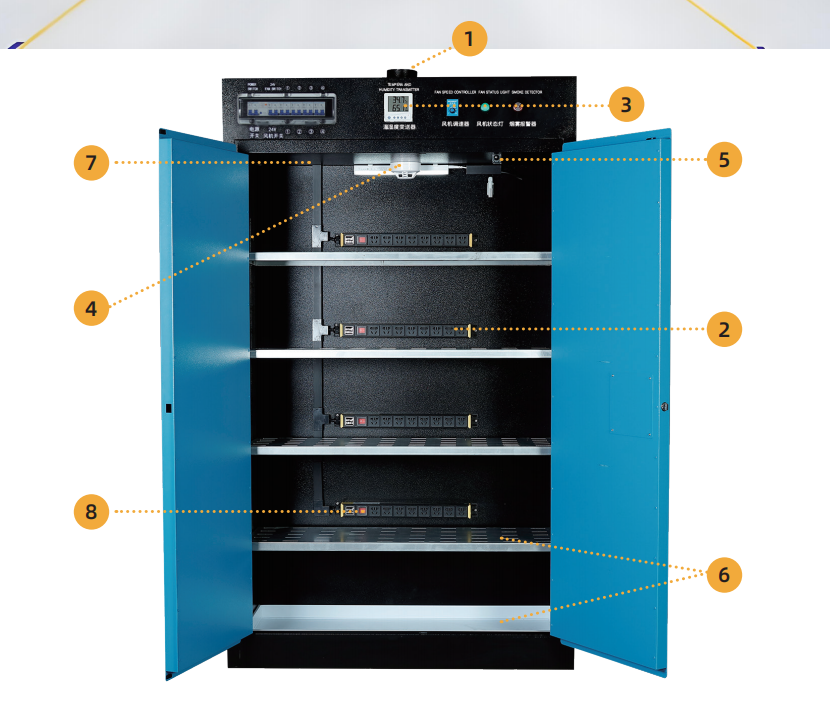

Features:
1. The top of the cabinet is configured with frequency conversion and low -power axis flowers for exhaust operations to effectively discharge the heat generated by the battery charging. At the same time, the diagonal dual -channel air pipe design can be used, which can make the exhaust wind efficiency more efficient.
2. Standard four groups of 8 new national standard industrial -grade PDU cabinet power sockets, separate line control, effectively prevent line overload and short circuit, and provide safety guarantee for battery charging.
3. High -precision temperature and humidity transmitter, adopt an import sensor, support RS485 signal output, and meet the IP65 high protection level.
The temperature and humidity value of the cabinet can be monitored in real time under the power -on state. When the temperature and humidity exceed the limited value of the settings, the built -in beeurizer automatically alarm.
4. Independent light -sensitive smoke detectors are installed on the top of the cabinet, which is preferably fire -certified flame retardant material, which has a sensitive response. When the smoke detector detects the smoke, the bee tweee on the front of the cabinet will emit sound and light alarm; at the same time, the axis flowers will automatically stop working to prevent the smoke from leakage.
5. The LED is not glorious in the cabinet, and the inside of the cabinet is evenly illuminated by the cabinet, which is convenient for sending the battery and tools. Door -controlled LED lights, humanized design, automatically turned on/off the mode, more in line with the habits of staff use.
6. The cabinet is equipped with four adjusted steel layer plates. The layer board special ventilation holes, which increases the air liquidity inside the cabinet to ensure good heat dissipation. The bottom of the cabinet is installed with a PP leakage tank, which is used for corrosive liquids such as electrolytes generated by the accidental leakage of batteries.
7. The hanging point for the installed suspension automatic fire extinguisher is reserved inside the cabinet. Users can install a suspension automatic fire extinguisher according to the actual needs.
8. The electrical components installed by the cabinet are well -known brands at home and abroad to further improve the stability and safety of the charging cabinet operation.
